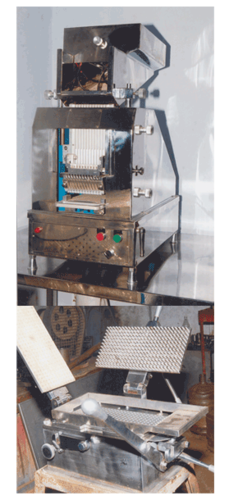

Capsule Filling Machine

Capsule Filling Machine
Capsule Filling Machine
Product Code : LFM 01
Brand Name : ANPHARMA EQUIPMENT
Product Description

We are a reliable manufacturer and supplier of world class Capsule Filling Machine. It has been designed for application in medium to large scale pharmaceutical companies. Our design engineers put in excellent efforts in order to provide the most compact designs. With simple operation features and capable of saving time and labour, our Capsule Filling Machine is gaining huge popularity in the market. The main body is fabricated with SS 304 grade stainless steel. We are mainly dealing in South Indian Region including Tamil Nadu,Karnataka & Andhra Pradesh

Key Features:

  • Excellent design
  • Superlative finishing
  • Economical
  • Suitable for various industries

Technical Specification :

Output

300 Capsules in 30 seconds.

Dimension

630 mm x 430 mm x 780 mm (75Kg)

Drive

1/4 HP, 3 phase motor 1400 rpm

Inter Changeable Parts can be supplied for std. Size of capsule 00/0/1/2/3/4/5 .

CAPSULE FILLING MACHINE (Model ACF) - SS Model (Main body MS duly painted) supplied with anyone size interchangeable units, SS loading trays, Hopper, Fibre Brush, PEFT Powder Spreader, Capsule Dispenser.

  • Model 1 (ACF 200) 200 Capacity with 2nos SS loading trays (40,000 per shift)
  • Model 2 (ACF 300) 300 Capacity with 3nos SS loading trays (60,000 per shift)
  • 00 & 0 all these sizes can be adjusted.
  • 0, 1 & 2 in one machine if extra pin.
  • 2 & 3 plate is orded with (d). 4 & 5 original machine


"We invite inquires from local as well as near by areas of  South Indian region."
