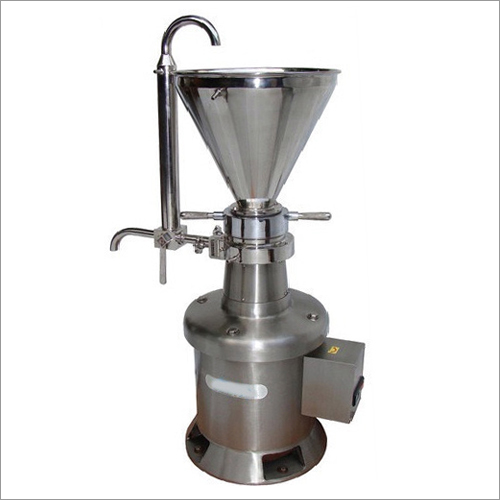

Colloid Mill

Colloid Mill
Colloid Mill
Product Code : SCM-v & ACM-H
Brand Name : ANPHARMA EQUIPMENT
Product Description

Anapharma Colloid Mill is ideal for homogenising, dispersing, emulsifying, comminuting, mixing of liquids to highly viscous products. Known among the leading manufacturers and suppliers, we leave no stone unturned to deliver the best products to our customers. Colloid Mill is based on Rotor-Stator principle. The principle is based on the combined functioning of an impeller or rotor and a stationary component known as stator. This is used in a tank containing the solution to be mixed or in a pipe, allowing the liquid to flow, to form shear. Colloid Mill is ideal for cosmetics, pharmaceutical, food, plastic and chemical industries for emulsification, homogenization and dispersion.

Features:

  • Based on rotor-stator principle
  • Latest technology
  • Economical
  • Easy to operate and maintain.

Technical Specification :

Model

Vertical (ACM-Y) / Horizontal (ACM-H)

Output

120 to 12,000 Kgs / per shift (Depending material)

Particle Size reduction

5 to 10 microns (Depending material)

Hopper Capacity

15ltrs

Motor

3 Hp 2650RPM, 440V, 50Hz, 3 Phase, AC Supply




"We invite inquires from local as well as near by areas of  South Indian region."
